Product Description

This unique design integrates the GPON and XGPON into an SFP+ structure. The Combo PON transceiver is designed for FTTx OLT with CW mode downstream 2.488/9.953Gbps and burst mode upstream 1.244/2.488Gbps. The products meet ITU-T G984.2 and G987.2 requirements and are compliant to RoHS 2.0.


Product Features

Ø  Integrated GPON and XGPON OLT

Ø  1577nm DML Laser plus MRR to replace 1577nm EML

Ø  Hot-Pluggable SFP+ form factor

Ø  CW Mode Downstream 2.488/9.953Gbps

Ø  Burst Mode Upstream 1.244/2.488Gbps

Ø  Support Classes  D1/D2/C+/N1/N2a

Ø  Commercial Temperature Range

Ø  RoHS 2.0 Compliant




Application

Ø  FTTx

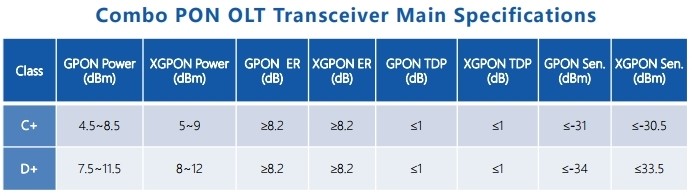

Main Specifications


Data download
