Product Description
Product Features
Application

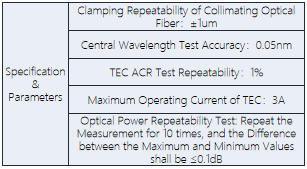

Main Specifications
Data downloadThe LIV test of laser is realized by controlling the current source and high-speed optical power meter. According to the test results, relevant parameters such as Ith and slope efficiency of the laser are analyzed, the optical power value and spectral characteristics of the laser at a fixed current are tested, and spectral information such as central wavelength and side mode suppression ratio are extracted.
Supports the setting of parameters such as operating temperature, power supply mode, current and voltage
Supports current step setting to realize current scanning while recording optical power
Supports operating temperature step setting to realize temperature scanning while recording optical power
Supports automatic measurement of spectral parameters such as wavelength and side mode suppression ratio
Supports the test of two photocurrents, and automatically compares the two currents to judge whether the results are qualified
Supports TEC internal resistance automatic test and laser LIV automatic test
Supports automatic temperature-power scan test, with configurable test conditions and specifications
Supports processing the original test data, and stores the processed data into the background database, displays the test results in real time, automatically judges whether the test is qualified, and saves the process data
